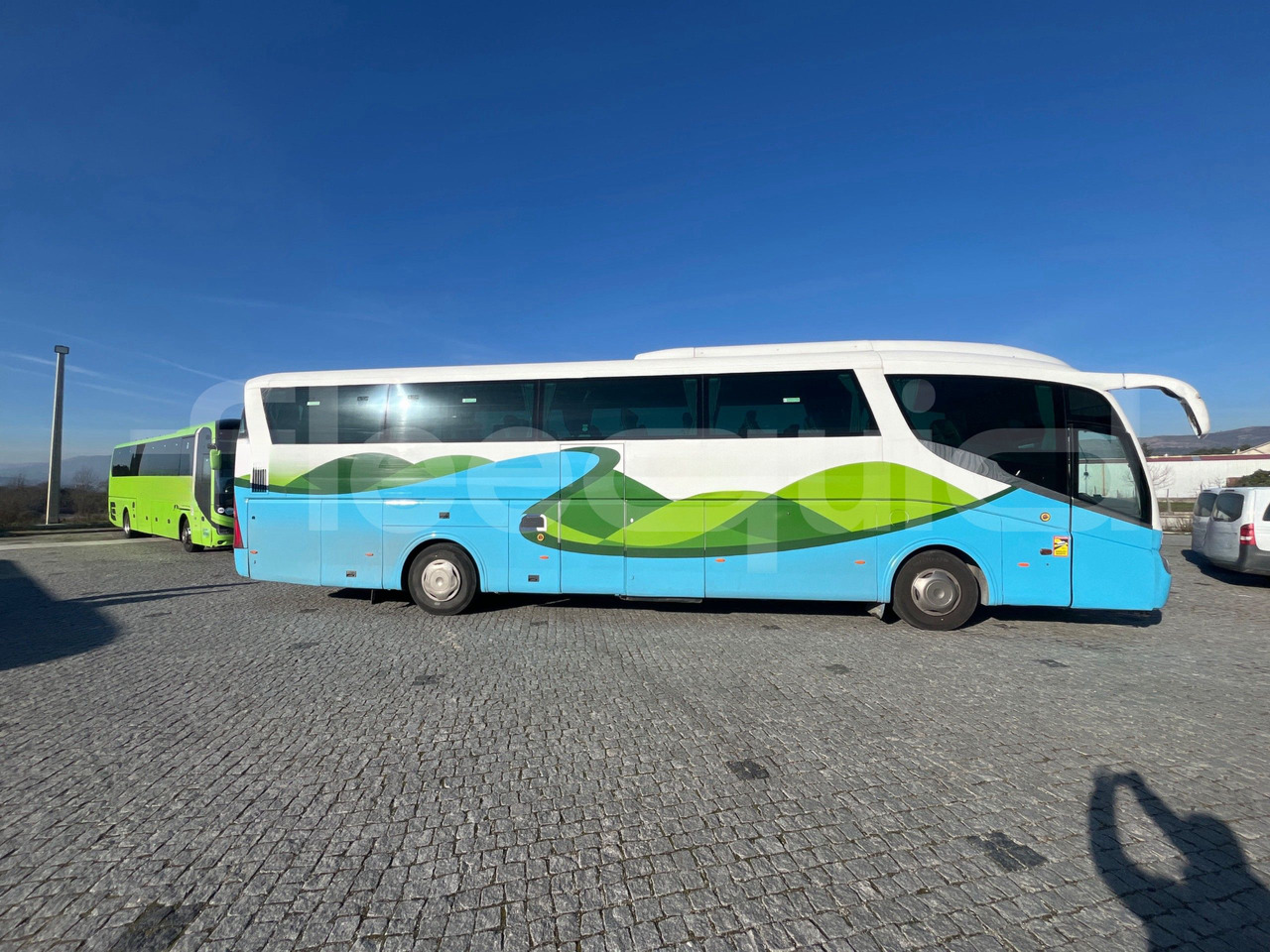

Turistibussi IRIZAR I6s 15.37

IRIZAR i6s INTEGRAL

1. General data / dimensions / construction /

Coach: Irizar

Model: i6s

Type: Integral

Length: 15 m

Height: 3.93 m

Width: 2.55m

Number of axles: 3

Number of seats: 56 +1 +1

Production year: 2017

VIN: VS916AD00H1016844

Electrically operated door with anti-trap protection and brake lock when open. .

Double-glazed double side windows factory tinted

2. Suspension system

Front axle: on independent air suspension

Rear axle: on independent air suspension

Suspension: with self-leveling system, vehicle height control from the driver's cockpit and independent tilting of the vehicle to the right

3. Appearance / colors / materials

Exterior mirrors, bumpers, body color radiator grille

Alcoa alloy wheels

Michelin M + S 295/80 R22.5 tires

The i6s seats extend to the side and fold out backwards.

4. Engine / cooling system / fuel system

Engine: DAF MX 11 320KW / 430HP

Fuel tank capacity: 1050L

Engine compartment with additional soundproofing insulation

The bonnet is lockable

5. Steering, braking and chassis, gearbox

Leather multifunction steering wheel adjustable in two planes

Hydraulic power steering

Ventilated front and rear disc brakes.

Anti-lock braking system.

Anti-slip system when starting ASR.

ESC stabilization system.

Electronic braking force distribution EBD

Additional Retarder brake integrated into the gearbox.

A stop brake that prevents starting when the door is open

Automated ZF 12-speed gearbox - Astronic

TPMS - wheel pressure and temperature control system.

LDW - lane assistant

FCW - anti-collision radar.

ACC - active cruise control

6. Vehicle lights / interior lighting / additional signaling

LED headlights with daytime running lights

The stop light is activated when the additional Retarder brake is applied

Fog lights with cornering function

"Stop" buttons signaling stopping on demand / notification to the driver

Engine compartment lighting

Backlight on bus entrance steps

Indoor and night lighting controlled from the driver's cockpit

Lighting of the main luggage space

Pneumatic and electric horn

7. equipment

Two-zone air conditioning controlled electronically.

47KW air conditioning compressor

Rear view camera.

Rain sensor that automatically activates the wipers

Dusk sensor that automatically turns on the lights

On-board computer

Heated outside mirrors, electric adjustment and electric folding of mirrors.

Interior mirror

The left driver's window is heated and electrically opened

Cruise control with a speed limitation system for steep descents

Maximum speed locking system programmable in the steering wheel.

Outside temperature indicator in dashboard with 4oC temperature signaling

Two switches for the electrical system (main disconnecting the battery, and the second leaving the Webasto power supply, tachograph and car alarm)

Additional heating independent of Spheros engine operation with the possibility of programming 7 days ahead.

Boot lid pneumatically opened upwards with control from the driver's cockpit.

Bosch audio + DVD system.

Driver's bedroom with heating and telephone for communication with the driver.

A fridge in the front of the bus.

4G Wi-Fi router

Kitchen at the central entrance Frenzel FOAS110

Third windshield wiper.

8. Driver space:

Pneumatic driver's seat adapts to the driver's weight, with seat heating and seat back.

5-point pneumatic adjustment of the driver's seat backrest.

Electrically operated front and side left window blinds.

Document safe located under the driver's seat

9. Passenger space

Armchairs i6 fold out and fold out

Individual tablet system for each passenger (Multimedia, Internet, TV, Games)

3-point seat belts

230V and USB sockets at each passenger seat.

Mesh for the press placed on the back of the backrest

Lockable shelves above Aircraft passengers

Individual lighting, air conditioning and ventilation

stop button for each passenger

Curtains at the side and rear windows

Two emergency exits in the roof with manual tilt function

Footrests next to passenger seats

Carpet in the entire passenger space.
